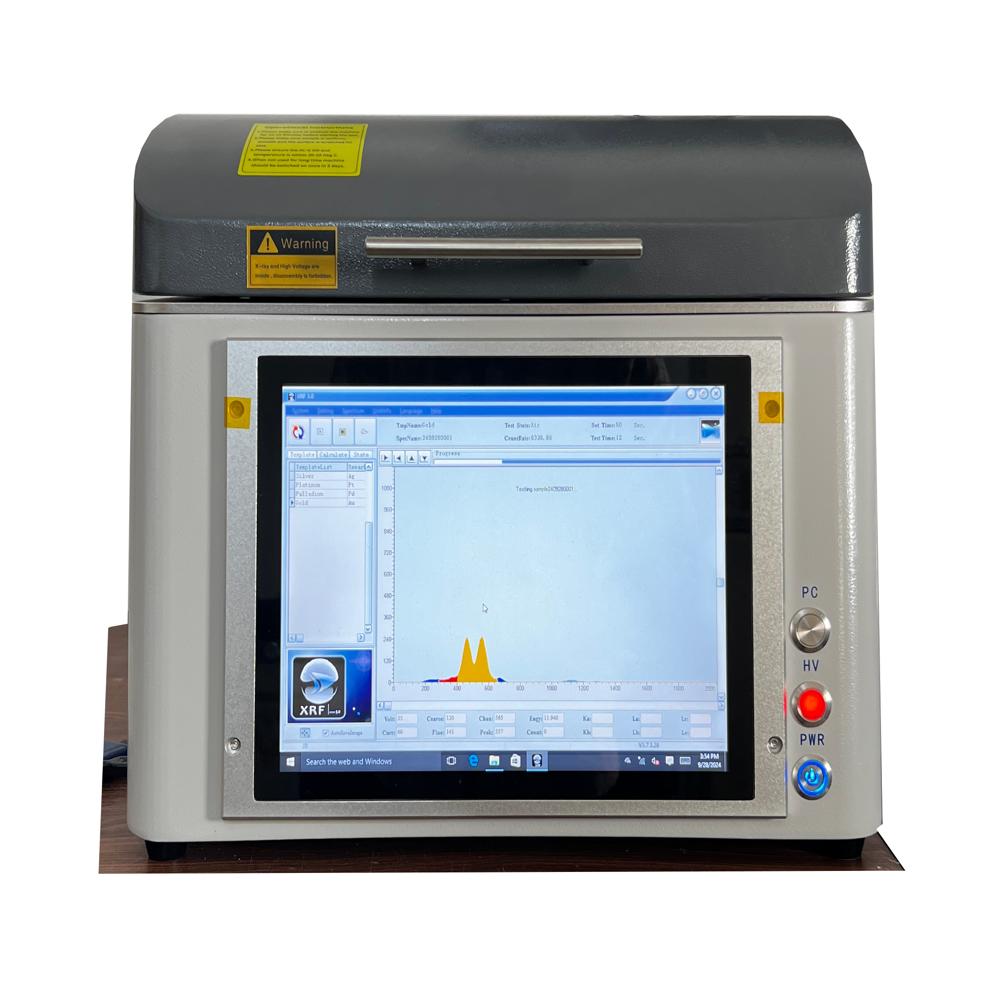

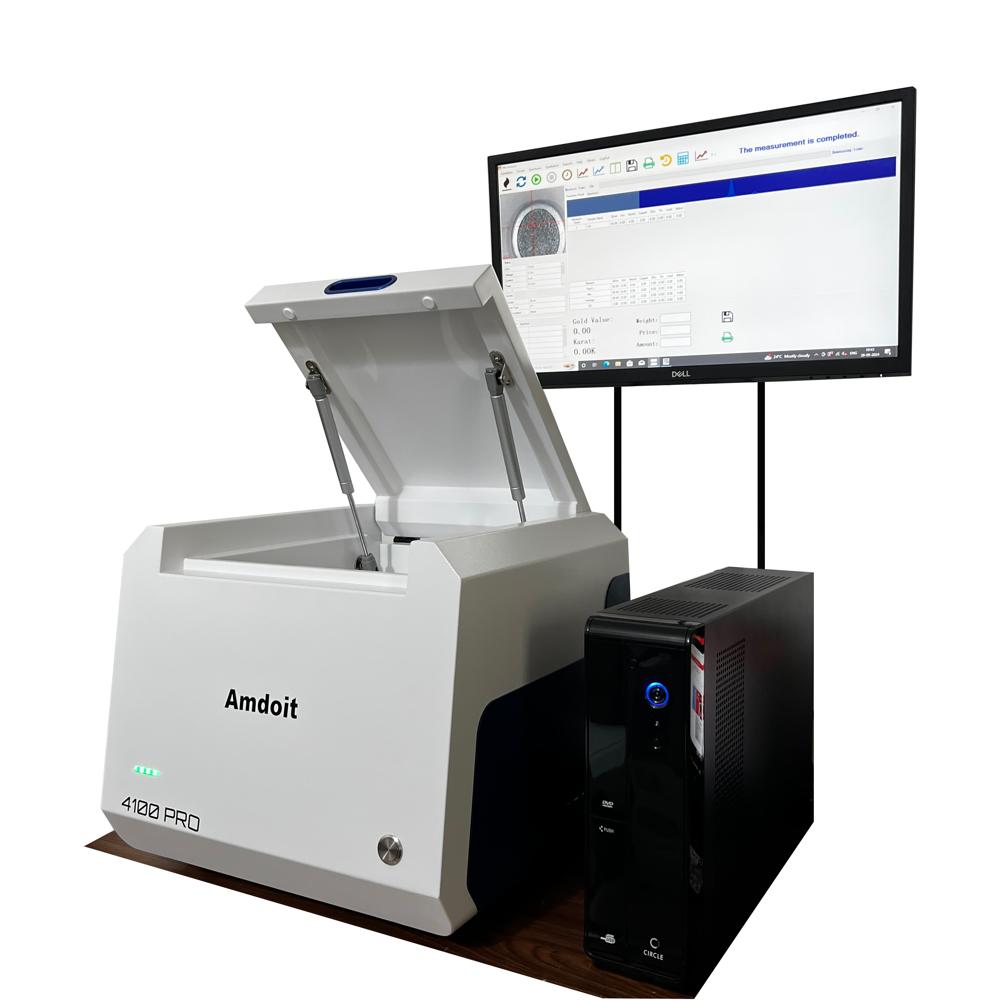

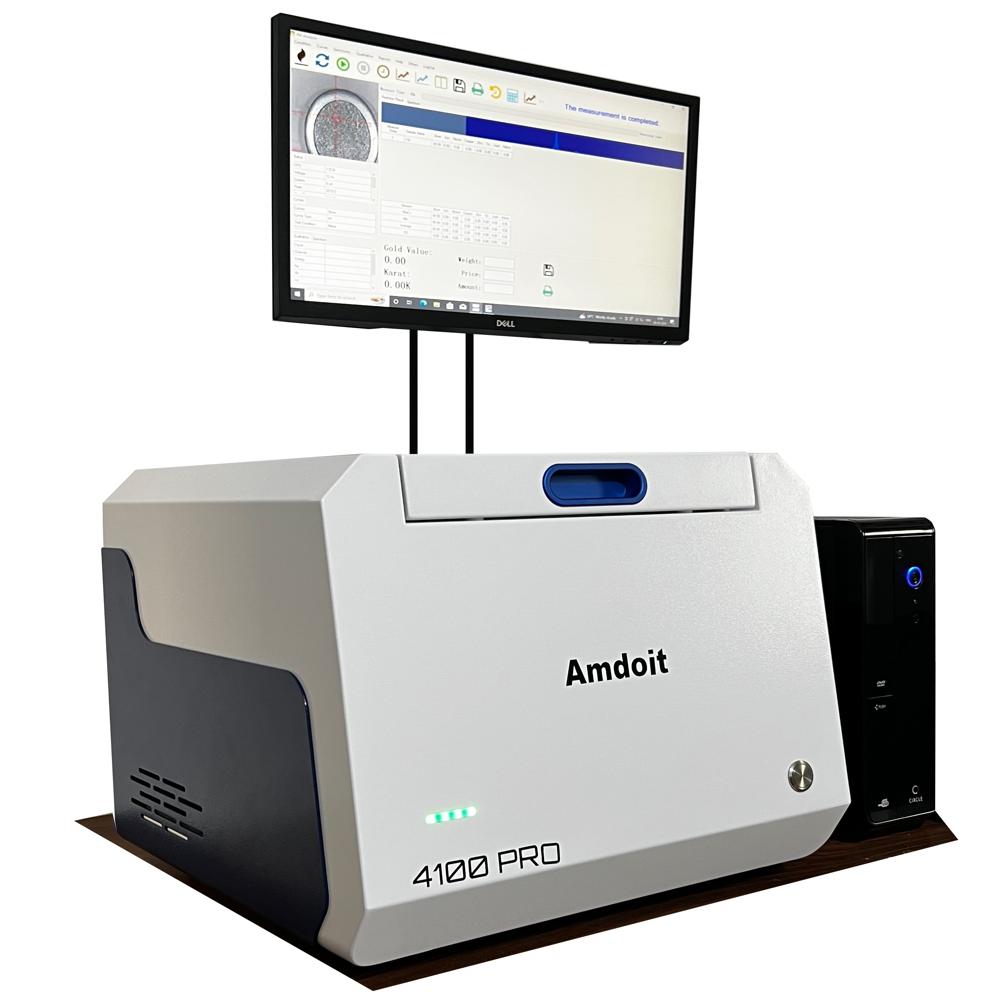

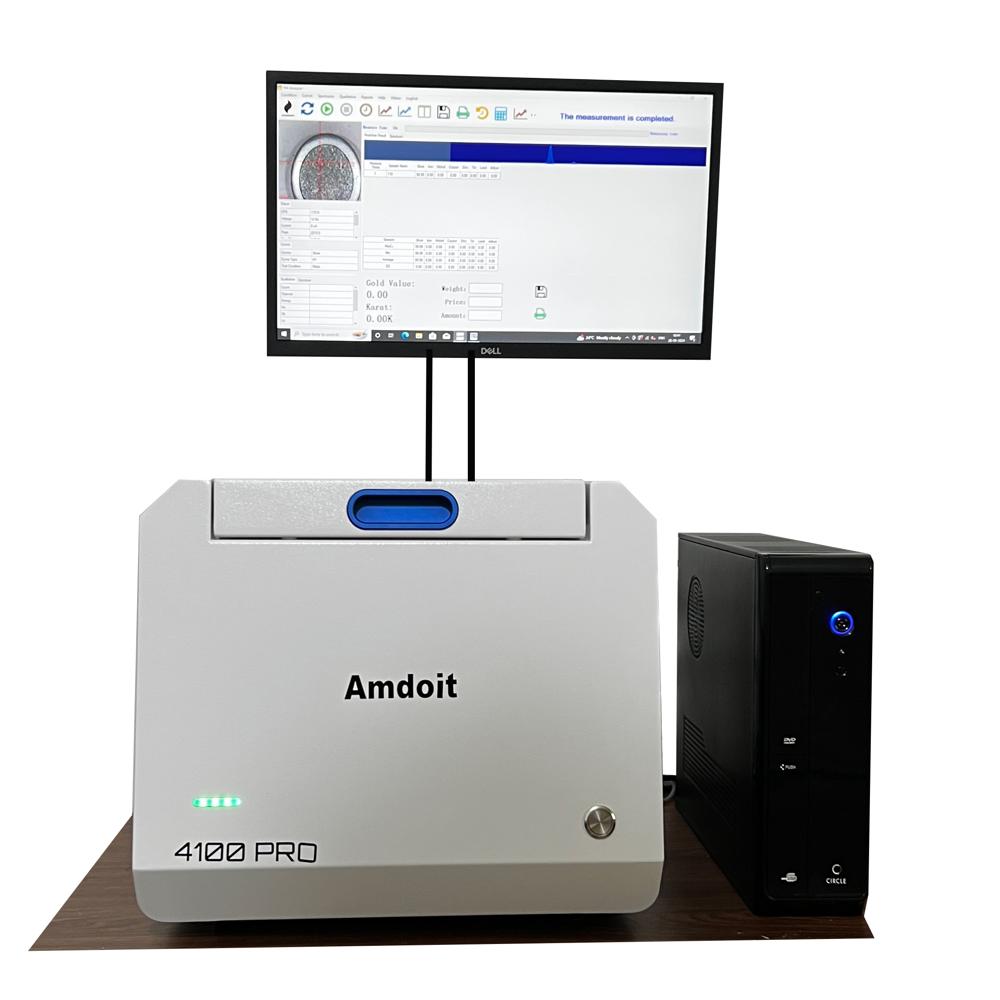

Gold testing machine (4100 Prop Pro )
1050000.0 INR/Piece
Product Details:
- Measuring Range 1 ppm - 99.99%
- Frequency 50/60Hz
- Mounting Type Benchtop
- Display Type 21.5 LCD Monitor
- Automation Grade Automatic
- Response Time < 60 seconds
- Resolution 0.01%
- Click to View more
X
Gold testing machine (4100 Prop Pro ) Price And Quantity
- 1050000.0 INR/Piece
- 1 Unit
Gold testing machine (4100 Prop Pro ) Product Specifications
- 10C - 30C
- XRF Gold Testing Machine
- 21.5 LCD Monitor
- Automatic
- < 60 seconds
- 0.01%
- Non-destructive testing, multi-element analysis, fast result, user-friendly software
- PC Software Control
- Benchtop
- 1 ppm - 99.99%
- 50/60Hz
- USB, HDMI, Ethernet
- 50 mm (Sample chamber)
- < 60 seconds
- 1 at a time
- Gold, Precious metals, Jewellery Analysis & Testing
- 0.01%
- 22 kg
- 80% RH
- 220V/110V, 50/60Hz
- Gold Purity Testing, Quality Control, Assay
- 220V/110V
- Up to 100mm 100mm 50mm
- Au, Ag, Pt, Pd, Rh, Ru, Ir, Os, Cu, Ni, Zn, Cd, In, etc.
- USB, HDMI
- Air-cooled
- Energy Dispersive X-ray Fluorescence (EDXRF)
- Solid, Liquid, Powder
- High Resolution SDD (Silicon Drift Detector)
- Digital, printable reports
- X-ray safety standards compliant
- 50 kV micro-focus X-ray tube
- 4100 Prop Pro
- Laboratory, Showroom, Industrial
- Vacuum enabled
- Windows 10 and above
Gold testing machine (4100 Prop Pro ) Trade Information
- Pune
- Cash in Advance (CID)
- 10 Unit Per Month
- 15 Days
- Contact us for information regarding our sample policy
- Wooden Box
- All India
Product Description
Description :
Amdoit SIPIN Gold Testing Machine specifically designfor refineries , manufacturing unit and testing/ tunch center
Software : Unique software which displays result as well as able to print report with photo of the sample
Free Upgrade lifetime
Advanced features in software which can save Data in PDF, Excel and Word format
Details of Machine :
Non Destructive gold testing is one of the most effective and efficient way to test and measure accuracy ( Karat) of gold using XRay Spectroscopic method.
Amdoit Technologies manufacturers innovative machines which are high quality , reliable and provide excellent Return on Investment for the customers.
Amdoit SPin ( Pin Diode) Pro Gold Testing Machine specifically design for Hallmarking center and highest accuracy testing center .
Non Destructive gold testing is one of the most effective and efficient way to test and measure accuracy ( Karat) of gold using XRay Spectroscopic method.
Amdoit Technologies manufacturers innovative machines which are high quality , reliable and provide excellent Return on Investment for the customers.
Specifications :
METHOD ; XRF spectrometer
Detector : SiPin ( PinDiode) detector from AMETEK
XRay Voltage : 50KV
Resolution : 135 +- 5 ev
Analyzer : Multichannel
Anyalytical Range : 1 ppm to 99.99 %
Testing time : 30 Seconds to 60 Seconds
Accuracy : 0.1 % ( 99.99%)
Element Detected : Gold , Silver , Iridium, Palladium , Copper , Zinc, Cobalt , Ruthenium , Nickel, Platinum, Cadmium, Manganese, Iron, Tungsten, Lead, Strontium, Rhodium, Osmium (total 25 metals including all dangerous combination metals with 0.01% accuracy )
Sample form : Solid Liquid and Powder
Size of the machine : 450 X 450 X 380 mm
Weight of the machine : 38 Kg
Computer : Inbuilt CPU in the machine
Can fit any display of choice
High-Precision Technology for Metal Analysis
The 4100 Prop Pro utilizes state-of-the-art EDXRF technology and a high-resolution Silicon Drift Detector, ensuring reliable detection of a wide spectrum of elements. Its energy-efficient, air-cooled system and 50 kV micro-focus X-ray tube offer swift, accurate results, making it perfect for gold, jewelry, and alloy testing.
User-Friendly Software and Flexible Output Options
This gold testing machine is controlled by intuitive PC software compatible with Windows 10 and above, allowing for smooth operation and comprehensive data management. Users can easily generate, print, or export detailed analytical reports, enhancing workflow efficiency for assay and quality control tasks.
Safety and Versatile Sample Handling
Compliant with X-ray safety standards and equipped with interlocks, the 4100 Prop Pro prioritizes operator safety. Its vacuum-enabled chamber accommodates various specimen types and sizes-up to 100mm x 100mm x 50mm-making it versatile for inspecting unique or irregular jewelry and precious metal samples.
FAQ's of Gold testing machine (4100 Prop Pro ):
Q: How does the 4100 Prop Pro Gold Testing Machine determine metal composition?
A: The 4100 Prop Pro analyzes samples using EDXRF technology, which detects and quantifies multiple elements by measuring the fluorescent X-rays emitted when the sample is exposed to high-energy X-rays. This allows precise, non-destructive compositional analysis of gold and other precious metals.Q: What types of samples can be tested with the 4100 Prop Pro?
A: This machine is capable of analyzing solid, liquid, and powder samples. The vacuum-enabled chamber can accommodate specimens up to 100mm x 100mm x 50mm, making it suitable for coins, jewelry, bullion, scrap, and even complex samples encountered in laboratories and showrooms.Q: When should the 4100 Prop Pro be used for testing?
A: The 4100 Prop Pro is ideal for quick, on-the-spot purity assessments and quality control, with a test speed of less than 60 seconds. It can be used during assay processes, inventory evaluations, and whenever fast, reliable results are needed in a laboratory, showroom, or industrial setting.Q: Where is the optimal environment to operate this machine?
A: This unit is designed for benchtop use in controlled environments such as laboratories, shops, and industrial facilities. The recommended operating conditions include temperatures from 10C to 30C and humidity up to 80% RH for optimal accuracy and longevity.Q: What is the process of testing a gold specimen with this equipment?
A: To test a sample, simply place it in the vacuum-enabled chamber, initiate the analysis through the PC software, and receive digital results on the 21.5" LCD monitor within 60 seconds. The non-destructive testing preserves samples for further handling or display.Q: How does the 4100 Prop Pro enhance accuracy and efficiency?
A: Thanks to its high-resolution SDD detector, advanced X-ray tube, and automatic operation, the 4100 Prop Pro delivers precise results with an accuracy of 0.01% and a measuring range from 1 ppm to 99.99%, ensuring trustworthy data for assayers and jewelers while maximizing throughput.Q: What are the key benefits of using this gold testing machine for businesses?
A: Businesses benefit from fast, accurate, and comprehensive gold purity analysis, which reduces error and material waste. The machine's ability to provide printable, digital reports and its user-friendly interface streamline testing workflows, making it a valuable asset for manufacturers, exporters, and service providers in the precious metals industry.Tell us about your requirement
